Your boat sound system is crucial to entertaining guests while on board and listening to music on the water can be a very surreal experience when captaining your vessel on an adventure. But what should you do when your boat’s sound system is no longer working? Read through this stereo troubleshooting guide to figure out why the radio won’t turn on, speakers malfunctioning or, in general is stereo is not getting any power.

If your boat stereo doesn’t produce sound or screen wont turn on, try this guide first and then contact the professionals for further support or new installations!

The stereo system is strictly an entertainment system that can provide music to areas on the boat where the speakers are installed. Some vessels have a single stereo that runs sound throughout the boat or through different zones of the boat.

If your system looks like a traditional aftermarket car stereo system, then more often than not, these systems fail internally due to the high humidity or direct water they have to endure being in the marine environment.



5 Steps to Diagnose and Repair Your Boat’s Stereo System

All Stereo systems on most vessels are running on the battery system onboard (the DC system). Because of this, it is important to figure out if this system onboard is working as it should.

1. First we would want to confirm that the onboard DC system is working as it should be onboard. To do this simply look at your main DC electrical panel and identify the voltage monitor for your batteries. This normally should be between 12.5v-14.5v for a 12 volt boat or 24.5v to 28v for a 24 volt boat.

2. If you don’t have a meter onboard you can simply turn on all the cabin lights or freshwater system onboard to identify if these known working systems are operating as they should. For lighting systems make sure they are the standard brightness and not significantly dimmer than normal.

3. If the power system onboard is working as it should the next task is to find where the main circuit breaker for the stereo system is. If the system is on, power it off for a minute and power it back on. If you don’t know which breaker it is please power on all breakers and test system response.

4. If the system still doesn’t power on, the next step is to pull out the stereo unit and figure out if the unit has power to the rear. Most stereos either have a single car style fuse installed in it directly or a couple inline fuses coming off the main power feed. Check these system for being blown and replace if necessary.

5. If all this has been checked out so far and you still don’t have power you will need to unplug the stereo and test for power with a multimeter. If the system is getting 12v power then it can be safely assumed that the stereo unit has been damaged in some way and is internally broken. At this time It’s recommended to remove and replace the stereo with a marine rated brand.

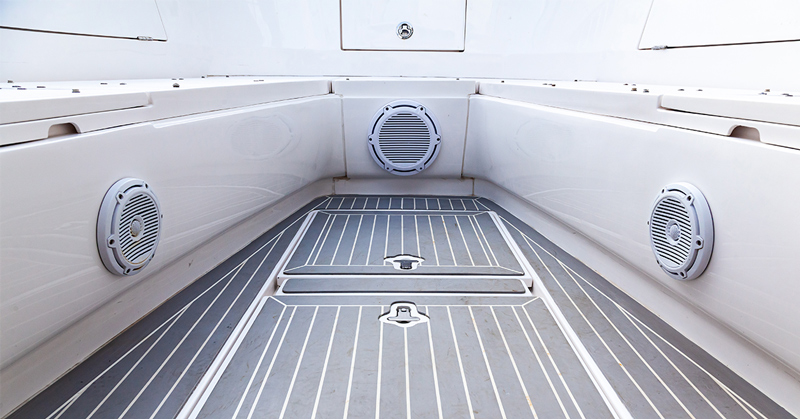

Troubleshooting Tips for When Your Boat Speakers Aren’t Working

If your boat speakers are not working, the issue could be as simple as a loose wire or as complex as a blown speaker cone. Start by checking the speaker connections at the back of the stereo and at the speaker terminals. Corrosion, especially in saltwater environments, is a common culprit and can prevent proper signal transmission.

What to Do When Your Boat Radio Is Not Working: When your boat stereo is not working at all, meaning it won’t power on, inspect the fuse box and power cables first. Marine radios often have inline fuses that can blow from power surges or water exposure. Make sure the radio’s grounding is secure, and verify the battery voltage. A low battery may have just enough power to turn over your engine but not enough to boot up electronics.

Boat Radio Turns On but No Sound? Here’s Why: If your boat radio turns on but no sound comes out, don’t assume the radio is broken. This issue is frequently due to incorrect speaker wiring, a muted source, or a damaged amplifier (if your setup includes one). Cycle through the input sources to confirm it’s set correctly, and test with a different audio device if available. Also, ensure the fader/balance settings aren’t pushing sound to a disconnected or broken speaker zone.

Diagnosing a Marine Radio Not Working in Harsh Conditions: A marine radio not working properly can often be traced to moisture intrusion or UV damage. Unlike car radios, marine units endure harsher environments and require periodic checks. Remove the radio from its housing and inspect the back panel for rust or corrosion on the terminals. Applying dielectric grease and using weatherproof covers can extend the life of your marine audio gear.

How to Prevent Future Issues of Your Boat Stereo Not Working

1. Use Marine-Grade Equipment:
Make sure all components, including the stereo, speakers, and wiring, are rated for marine use to withstand salt, humidity, and vibrations.

2. Install a Waterproof Cover:
Protect your stereo unit with a waterproof cover or enclosure, especially if it’s exposed to the elements.

3. Regular Maintenance:
Periodically check all connections, clean terminals, and ensure that your stereo is securely mounted to prevent damage from vibrations.

4. Install a Voltage Stabilizer:
Sudden voltage drops can damage sensitive electronics. A voltage stabilizer helps maintain a consistent power supply to your stereo system.



When Do I Hire a Boat Stereo Repair Technician?

It is recommend that you do not do a new stereo installation yourself.

Stereo wiring can be complex and is best left to the professionals. It is important for you to try and troubleshoot on your own to determine the issue and whether a professional should be called to repair your boat’s sound system. It will save you time and headaches in the future to call us.

Contact our marine electrician service for quick and effective solutions to all your boat radio troubleshooting.
